Product Description

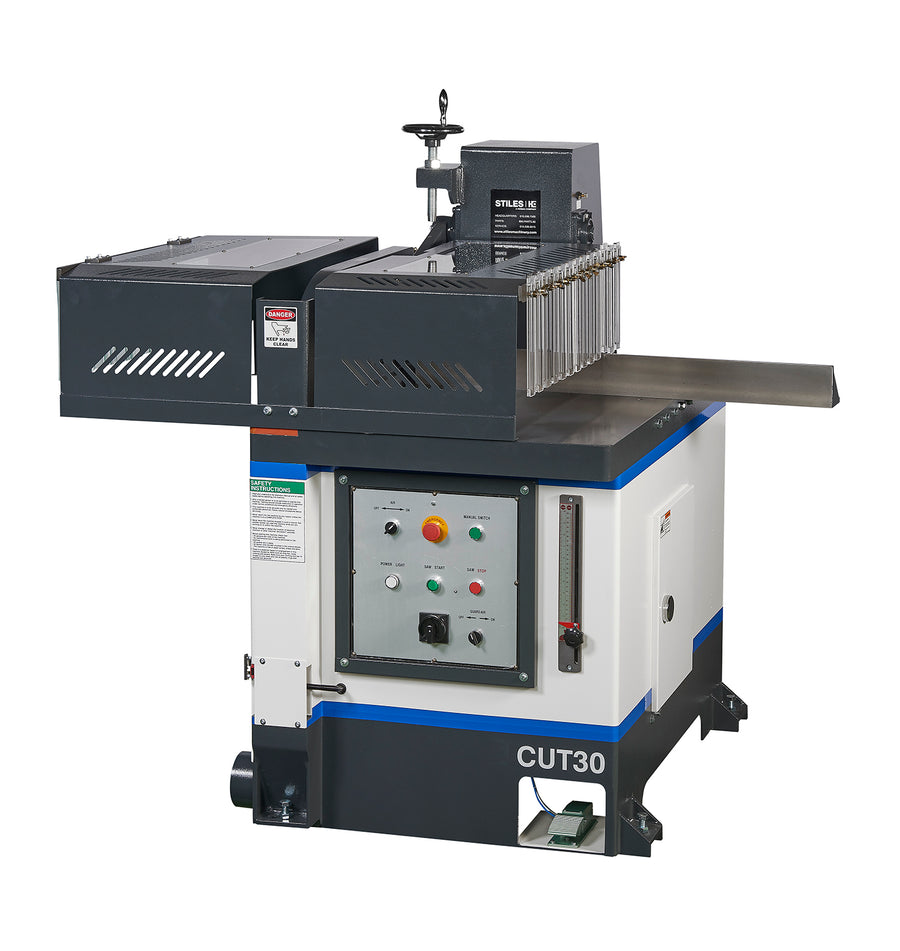

The Ironwood CUT30 Cut-off Saw offers operators a safe and reliable, heavy-duty crosscutting solution. The table surface of the CUT30 saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.

Technical Advantages

Cutting capacities offer maximum thickness up to 9 ¾” and up to 26 ¾” width
Table surface is precision ground to assure cutting accuracy
Adjustable cycle speeds offer fast cutting rates
Powerful, high torque, high-efficiency 15 HP IE3 motor ensures high stability at fast cutting speeds
Belt-tension adjustments and replacements are performed quick and easy
Ironwood’s optional outfeed roller conveyor can be equipped with a graduated gauge bar and flip stops to ensure consistent cutting lengths

Efficiency Features

Pneumatic operation of the cutting cycle is conveniently controlled via foot pedal
Pressure clamp is easily adjusted to provide versatility when working with varying thicknesses of material
Proper dust ports ensure positive air flow to prevent dust build-up within the machine cabinet
Cycle speeds can be conveniently adjusted from outside the machine cabinet
Retrofittable Ironwood infeed and outfeed roller conveyors can be added to improve handing and production efficiency
Machines are offered in right-handed feed and left-handed feed directions

Safety

New safety guard minimizes risk of operator’s hand accessing the cutting area
Enhanced safety elements ensure saw blade is totally enclosed within the cabinet and covered by the pressure clamp when raised to perform cutting operation
Limit switches ensure safe tool changes, allowing access doors to opened only when blade has stopped rotating
Ironwood’s spring-loaded rear clamp secures workpieces during cutting operations
Emergency Stop
One year warranty

Technical Specifications

Cutting capacity (thickness x width)	2" x 26 ¾” / 4" x 24" / 6" x 20” / 8" x 15” / 10" x 9 ¾”
Cycle operation	Pneumatic
Material feed direction	RH or LH
Saw blade size	30”
Saw arbor Ø	2”
Saw blade speed	1600 RPM
Table size	52 ¼”x 32 ¼”
Motor	20 HP
Air consumption	351 l/min
Air pressure req	23.415 (l)
Dust port Ø	(3) x 4” ports
Gross weight	1,700 lbs
Packing dimensions	57” x 43” x 65”

*460V power upgrades available upon request. Additional charges may apply.
